Cast Resin (Dry Type) Transformers

Cast Resin (Dry Type) Transformers
Cast Resin (Dry Type) Transformers
Product Code : 04
Product Description

Cast Resin (Dry Type) Transformers

New India Electicals offers a full range of dry-type transformers built to minimize environmental contamination and fire hazards. Dry-type transformers are in frequent demand among our customers. These transformers meet strict parameters with respect to electrical system demands and functioning in areas with extreme climatic conditions. Our dry and cast transformers are virtually maintenance free and are manufactured in accordance with international standards. Transformers are manufactured in vacuum impregnation or in vacuum pressure impregnation (VPI) technology, depending on the application. These transformers are used in many standard and special applications, in commercial buildings, on board vessels as well as in deep mines and industrial environments. Transformers with higher power rating are usually protected in appropriate enclosures and are sometimes equipped with air-forced cooling.

Range
KVA 160 to 10000
P.V 11000/33000
S.V 433/550/660
Vector DYN11
Duty Continuous
Winding Copper Duty Resin casted
Srd 11171/IEc:60726/ANSI/NEMA
Salient Features
Off circuit tap links + 5% in steps of 2.5%.
Class F and H insulation.
HV Delta connected, LV Star Connected with Dyn 11 vector group.
Natural air cooling and forced air cooling.
Enclosure – IP 23 to IP 33 and as per customer specifications.
Painting shades as per IS and IEC standards.
Cable boxes on HV and LV.

NEW INDIA ELECTRICALS LTD.

Contact Us

( *represents compulsory fields )

Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.




Substation System
Substation System
AC Motors High Voltage
AC Motors High Voltage
Flame Proof
Flame Proof
Roller Table
Roller Table
Wound Close Type
Wound Close Type
Mill Duty Motors
Mill Duty Motors
Laminated Yoke DC Motors
Laminated Yoke DC Motors
Solid Yoke DC Motors
Solid Yoke DC Motors
Borewell Submersible Pump
Borewell Submersible Pump
End Suction Mixed Flow Pump
End Suction Mixed Flow Pump
End Suction Pump [CE]
End Suction Pump [CE]
Fire Fighting Pumps
Fire Fighting Pumps
Type HG
Type HG
Gear Pump
Gear Pump
Type HGSX
Type HGSX
Stainless Steel Pumps
Stainless Steel Pumps
Polypropylene Pumps
Polypropylene Pumps
Dosing/Metering Pumps
Dosing/Metering Pumps
Sluice Valve
Sluice Valve
Butterfly Valve
Butterfly Valve
Gate Valve
Gate Valve
Power +F0
Power +F0
Power +V3
Power +V3
Power +V
Power +V
Low Voltage Panels
Low Voltage Panels
Power +B
Power +B
Power +R
Power +R
Power +M
Power +M
Furnace Transformers
Furnace Transformers

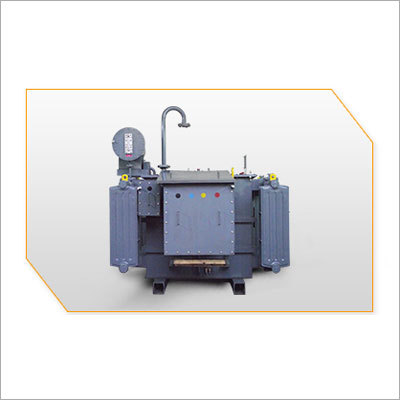

Distribution Transformers
