Mill Duty Motors

Mill Duty Motors
Mill Duty Motors
Product Code : 02
Brand Name : NEW INDIA ELECTRICALS LTD.
Trade Information
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Paypal, Others
  • Packaging Details
  • Box
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Mill Duty Motors

New India offers Mill Duty Motors specially designed for Steel Mill Drive applications. Motors are also used in Overhead Cranes & Cement Mill Drives. Motors confirm to AISE technical report. Motors are supplied with full speed, half speed and quarter speed designs based on requirement.

Range
KW 1.5 to 970
Frame 802 to 824
Duty S1/S4/S5
Armature Voltage 110 to 1100V
Excitation Voltage 180 to 360V
Insulation F/H
Enclosure IP23/44/54.
Cooling IC01/06/17/37/0041/066/W37A86/44
Mounting B3(Foot)
Standard AISE 802-824
Applications
Steel Mill Drives
Overhead Cranes
Cement Mill Drives
Salient Features
Conforming to AISE technical report no. 1-1991 / IPSS 1-03-002-94.
Full speed, half speed and quarter speed designs available.
Suitable for operations up to 500 volts.
Suitable for operation on 3 phase, 6 pulse thyristor converter.
Class ‘H’ insulation with class ‘F’ temperature rise limits.
Armature class ‘H’ with VPI in solvent less polyesterimide resin.
TIG welding of armature coil connection to commutator.

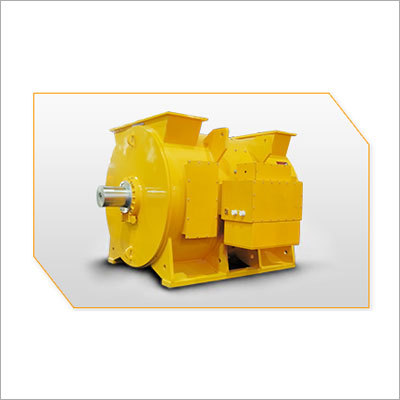

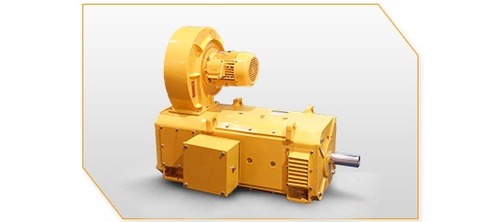

Split / Non split yoke without compensating winding or non-split laminated yoke with compensating winding. However, split yoke is preferred for 808 & above frames and compensating type for 812 & above frames.
Replaceable shaft.
Double shaft extension 1:9.6 taper with key way paralle to taper as per AISE or 1:10 taper with key way parallel to shaft axis as per IPSS.
Convertible between TENV & TEFV enclosure or with top mounted blower unit.
Loose hanging leads or terminal box as required.
Axial play of 3 mm approximately of shaft.
Brush position of 45 deg. For easy access for maintenance (except in case of laminated yoke version).
Motor mounting dimension can be matched to replace 600 series motors to AISE or Russian standard.
