Type RDRN

Type RDRN
Type RDRN
Product Code : 03
Product Description

Type RDRN

These pumps have a three piece construction & can be easily cleanable and maintainable. These pumps have a double helical refined gear and hardened grind finished shaft. The double helical gear prevents axial load & side thrust which helps increase life and performance of pump. These pumps have fanged end connections and are available in 1/2″ to 6″ size. These pumps can be operated up to pressure of 10 kg/cm² with 8.30 LPM to 2083.00 LPM flow capacity. These pumps are suitable for use with liquids up to viscosity of 100000 SSU and a maximum temperature of 200ºC.



General Description RDRN / RDRB series pumps are general purpose foot mounted pumps with flanged inlet & outlet ports.
Material of Construction Body: CI Gears.
Alloy Steel- Double Helical Shaft.
Alloy steel- case Hardened & ground.
Bearings & Bushes: Needle Roller bearing (FTRN) Bronze Bushes (FTRB).
Sealing: Oil Seal.
Sizes ½” to 6″ (8 different sizes)
Capacity 0.50 to 200 m3/Hr.
Pressure Upto 20 kg/cm2.
Features Upto 10,000 – cst. Temperature – up to 110°C.
Applications In built Pressure Relief valve • Heavy duty • Low Noise • Sturdy
Crude Oil, Dirty Oil, Kerosene, LDO, HSD, Wood Pulp, Furnace Oil etc.

NEW INDIA ELECTRICALS LTD.

Contact Us

( *represents compulsory fields )

Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.




Substation System
Substation System
AC Motors High Voltage
AC Motors High Voltage
Flame Proof
Flame Proof
Wound Close Type
Wound Close Type
Vertical Hollow Shaft
Vertical Hollow Shaft
Solid Yoke DC Motors
Solid Yoke DC Motors
Laminated Yoke DC Motors
Laminated Yoke DC Motors
Mill Duty Motors
Mill Duty Motors
End Suction Process
End Suction Process
End Suction Pump [CPHM]
End Suction Pump [CPHM]
End Suction Monoblock Pump
End Suction Monoblock Pump
Fire Fighting Pumps
Fire Fighting Pumps
Fuel Injection Gear Pumps
Fuel Injection Gear Pumps

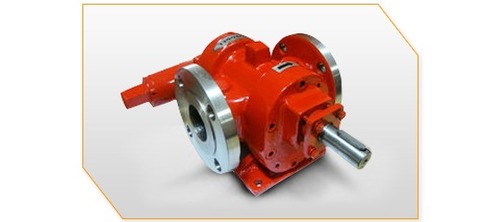

Type RDMS
