Send InquiryOutdoor 33kV VCB Switchgear Panels
Product Details:
- Supply Ability : 10 Piece Per Day
100000.00 - 500000.00 INR
X
Price And Quantity
- 100000.00 - 500000.00 INR
- 10 Piece
Trade Information
- Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP)
- 10 Piece Per Day
- 1 Week
- All India
Product Description

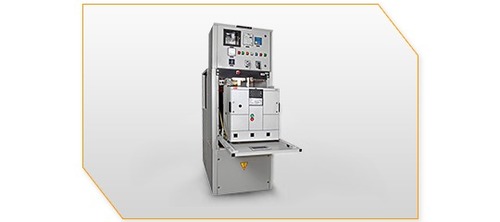

Power +V30

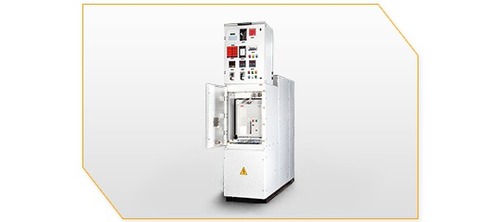

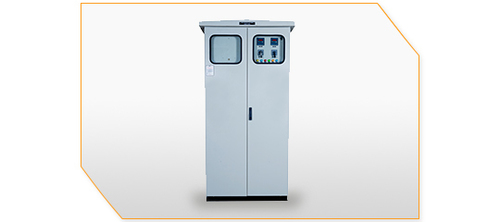

The Power +V3O are an Outdoor 33kV VCB Switchgear Panels of current ratings from 1250A to 2500A. Outdoor Panels are of Kiosk Type construction with double door in the front. The Rear door that is both hinged and bolted for safety. Adequate slope given on roof top to drain rain water. Robust weather and dust proof IP55 degree of protection externally and IP2X between compartments.
The Power +V3O are an Outdoor 33kV VCB Switchgear Panels of current ratings from 1250A to 2500A. Outdoor Panels are of Kiosk Type construction with double door in the front. The Rear door that is both hinged and bolted for safety. Adequate slope given on roof top to drain rain water. Robust weather and dust proof IP55 degree of protection externally and IP2X between compartments.
| Specifications |
|
|---|---|
| Panel Model: Power + V30 | 33KV Outdoor Kiosk Panel |
| Breaker | Vmax (31.5KA and below) and VD4 for 40KA |
| Supply voltage | 33KV |
| Rated current | 630A, 800A, 1250A, 2000A, 2500A, 3150A |
| Short time current rating | 18.4, 25, 26.3, 31.5, 40kA |
| Degree of protection of panel | IP 4X, IP5X |
| Sheet Enclosure | i) Prime grade sheet steel treated with 7 tank process and duly powder coated for longitivity OR |
| Busbar | Electrical grade Aluminium or 99.9% Oxygen Free Copper |
| Relays | Numerical, Electromechanical relays for Feeder, Transformer, Bus, Motor and Generator protections can be provided. |
| Metering compartment | Is designed such that meters, indicating equipments, Relays are arranged to make maintenance and operation easy. |
| Current / Potential transformer: | i) Resin cast transformers designed for low smoke and flame-retardant. |
| Standard dimensions of panel | W 1100 mm |
| Our Design Standards: |
|
|---|---|
| Breaker | IEC 62271-100 |
| Current transformer | IS 2705/1992 and IEC 60044-1 |
| Potential transformer | IS 3156/1992 and IEC 60044-2 |
| Busbar | IS 5082 for Aluminium |
| Sheet Steel: | IS 513 |
| Cables | IS 694 |
Special Features for Outdoor Kiosk Panels
- Kiosk Type construction With Double door in the front shall be provided.
- Rear door is both hinged and bolted for safety.
- Adequate slope given on top roof to drain rain water, dust & Particles.
- Robust weather & dust proof IP5X degree of protection externally & IP2X between compartments.
General Features
- Modular& compact for better strength and flexibility in extension.
- Fully Compartmentalized construction for optimal safety and protection
- Our design enables adequate space for large cable sizes. Even larger cables and additional runs rear extension is provided for cost effectiveness.
- Independent exhaust vents for all HT compartment are provided for natural cooling and exit for any flue gasses.
- Dedicated Circuit breaker compartment as per internationally proven ABB design.
- Cassette mounted ABB Circuit Breaker with draw out feature for easy maintenance and fail-safe safety.
- Live parts covered by automatic metallic shutters when breaker is racked out.
- Electrical anti-pumping design avoids mishaps due to mishandling of the breaker.
- Additional feature includes a separate Racking in/out mechanism which is provided in the breaker which can change from test to service positions and vice versa with the cubicle door closed.
- Only Branded and type tested sub components are used in our panels.
- Current and Voltage transformers are placed in chamber below Circuit breaker to avoid any kind of flashovers which may damage the breaker.
- Wiring done with flexible copper cable affirming to IS 694 for Longitivity and Durability.
- Optional integral earth switch can be provided on the cable side for Earthing.
- We provide Foundation frame as standard supply
- All hinged doors are provided with gaskets to keep away dust and water from the electrical components.
- Multiple guides are provided for safe and sure engagement of fixed and moving contacts.
- Breaker trolley shall be given along with the breaker panel for maintenance.
